Hey all, I have a pneumatic valve I plan to set up as a kit with cylinder and sell but I need some help on how to wire it first. It's 120 volt and has 3 connector's. Can anyone tell me which is the two power ones?

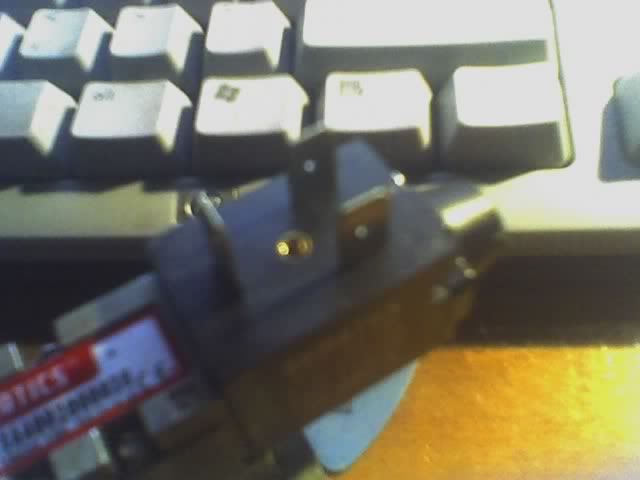

Here's a picture.


Thanks!


·
Registered
Joined
·
147 Posts
Looks like its the top two vertical blades.
Check out phantasmechanics great tutorial page. They have a valve pictured similar to yours (about half way down the page)

I'm doing my first air prop, and I used that tutorial for almost the entire thing. :)


·
Registered
Joined
·
241 Posts
It is the two going the same direction, the other is the ground. That is what's called a DIN connection, you just happen to be missing the actual connector. It's bacically a quick disconnect for wiring solenoid valves in industrial applications.
