Player of Paste
Joined
·
1,788 Posts
Discussion Starter · #1 · (Edited)
Buster Gravesley is my 2010 entry in the Hauntforum $20 Prop Challenge. Buster is a Zombie/Coffin Groundbreaker standing approximately 4 feet tall and mounted on a plywood base that can be angled in different directions when displayed. This prop was made from numerous recycled materials including; newspaper, cardboard, plastic bags, aluminum cans and plastic milk jugs. The project was started March 4th, 2010 and completed on April 2nd, 2010. The total cost for this prop was $19.03.

Link to tutorial:
http://www.stolloween.com/?page_id=3435






FREE ITEMS:

Newspaper
Plastic Milk Jugs
Cardboard (Corrugated and Cereal Boxes)
Plastic Grocery Bags
Aluminum Cans
Plastic Kitty Litter Container

PURCHASED ITEMS:

Scrap Plywood 22"x33" or 5.04 sq. ft x .20 $1.01
Scrap 2x4's 5 feet x .08 per foot .40
10 Large 4" glue sticks @ .10 (Walmart) $1.00
24 Large 12" glue sticks @ 12/$2.00 (Dollar Store) $4.00
17lbs flour (2) 5lb @.99 (Glenn's) and (2) 5lb @1.28 (Walmart) $4.03
Color Plain Paper Print (eyeball) .08
12"x12" piece aluminum foil 20ft @ 1.19 (Walgreens) .06
½ roll clear packing tape 6 @5.99 (Staples) .50
¼ roll masking tape 1 @.50 (Dollar Store) .13
1 recycled/used L-Bracket new price 1.18 (Lowes) x .3 .35
5 lbs Drywall Compound 63lbs @ 10.65 (Lowes) .85
1/10th bag Cellulose Fiber Insulation 1 bag @6.48 (Lowes) .65
12-2 ½ in recycled/reused Drywall Screws [email protected] x .3 .20
½ oz Pledge Future Shine [email protected] (Walmart) .10
4.5 feet Crepe Paper 81ft @ .57 (Dollar Store) .03
6 ft 14 gauge utility wire 110 ft @ 6.97 (Lowes) .38
6ft Drywall Patch Tape 300ft @ 4.98 (Lowes) .09
¼ Gallon Black Latex Paint 1 gal @ 10.41 after $5 rebate (Lowes) 2.60
½ Cup Gray Latex Paint (Free but calculated @10.41/gallon) .36
½ Cup Brown Latex Paint (Free but calculated @10.41/gallon) .36
1oz Yellow Acrylic Paint [email protected] (Dollar Store) .25
1oz Red Acrylic Paint [email protected] (Dollar Store) .25
1oz Brown Acrylic Paint [email protected] (Dollar Store) .25
6oz Golden Pecan Stain 32oz @ 5.87 (Lowes) 1.10

TOTAL $19.03


·
Player of Paste
Joined
·
1,788 Posts
Discussion Starter · #2 ·

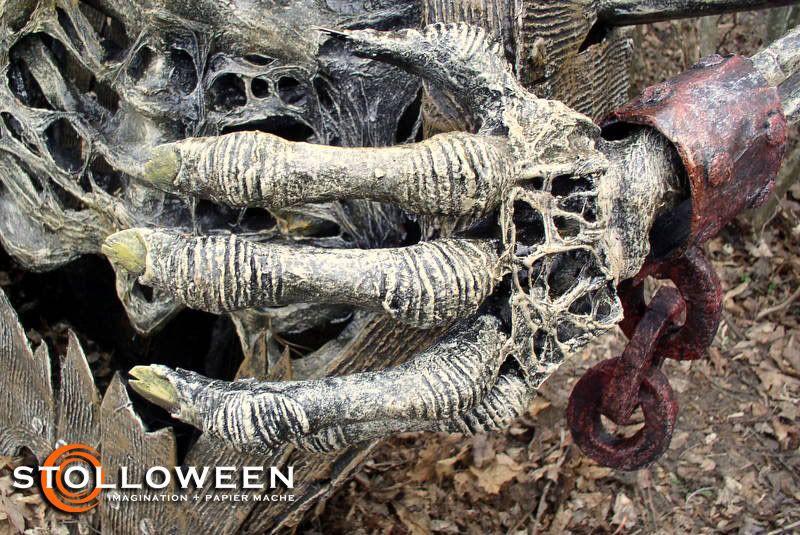

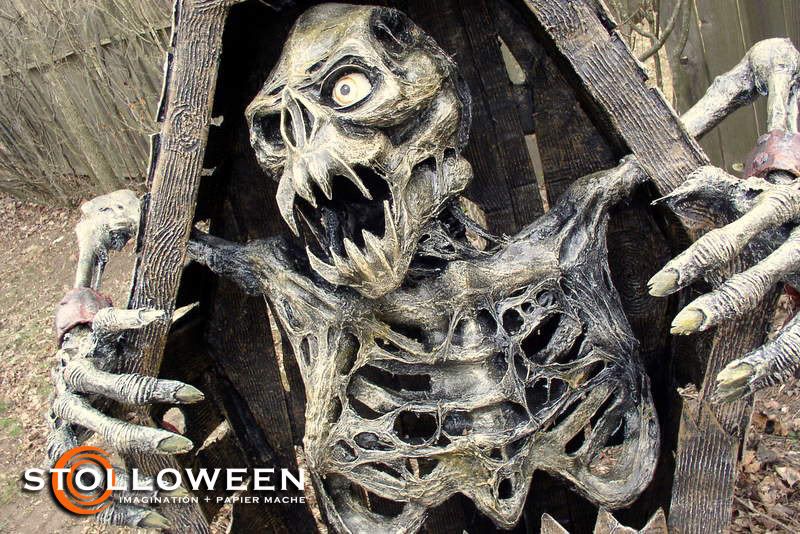

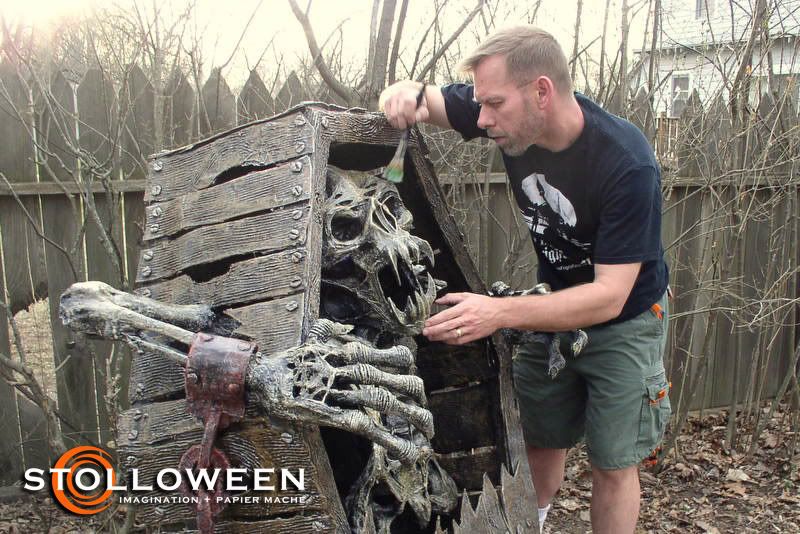

The entire prop is made with papier mache over an armature constructed of recycled materials. Each element (skull, arms, torso, hands, coffin, shackles) was created individually then assembled into the final prop. Here are a few construction pictures:







·
BRAINS!!!!!!!!!!!!!!!!
Joined
·
4,599 Posts
I'm still waiting for you to build a house out of paper mache! Wow Stolloween this is amazing work! The detail in the nails, shackles, hands, arms and coffin is unbelievable. I knew before you posted this piece of work that it would be amazing, but I don't know of any other work that you do that isn't outstanding. Great Job!!!!


·
Ghost Maker
Joined
·
3,014 Posts
Excellent! I love the detail, especially in the hands and coffin, and the way you combine the old casket coming out of the ground with a new twist on the ground breaker. This thing definitely captures your style, I can see several of these in a graveyard scene.


·
Registered
Joined
·
8,110 Posts
That is huge! Would you take some time to take some pics of you or someone standing next to it head on to give some sort of better scale to it?

Absolutely unbelievably amazing!


·
Premium Member
Joined
·
3,231 Posts
Amazing detail, Scott. That guy wants outta there BAD! Yeah, a graveyard sprinkled with several of these guys would definitely give the ToT'ers a reason to run! Beautiful work.


·
Super Moderator
Joined
·
64,173 Posts
This is just a stunning piece of work, Stoll, beautifully crafted and detailed. And he's not just a groundbreaker; he's a really ANGRY groundbreaker:D


·
Director of Ambiance
Joined
·
1,816 Posts
Oh wow, Scott - I love it.... that coffin out of cardboard is probably blowing my mind the most - with the pm clay screws... to look at that, no one would EVER know what it was made of. You are the man!


·
Player of Paste
Joined
·
1,788 Posts
Discussion Starter · #15 ·
Great job!

Another piece to go onto my Board O' Inspiration in the garage.

How much did this guy end up weighing?
My guess is around 30lbs...once everything was mounted on the plywood base I moved it around with a handcart.

Thanks everyone for the nice comments...Mr. Buster Gravesley was a very fun build...whet my appetite to make more.
